Overview：
-
TS082x series of data gathering panels (DGPs) are used to expand the number of inputs and outputs (or relays) on the Challenger system.
-
DGPs allow installers to easily terminate wiring connections for inputs and relay outputs at locations away from the panel.
-
Up to 15 DGPs can be connected directly to each Challenger control panel over a reliable RS-485 data bus,thereby minimizing cable runs.
-
If a communications failure occurs, the data gathering panel remembers its last alarm, helping to identify possible reasons for faults.
-
The TS0820 and TS0824 includes 8 standard inputs and a siren output. This standard configuration can be expanded to 32 inputs and 16 outputs.
-
The TS0827 is an economy DGP that has similar features but offers only four inputs and no integrated power supply or siren output. No expansion is possible.
-

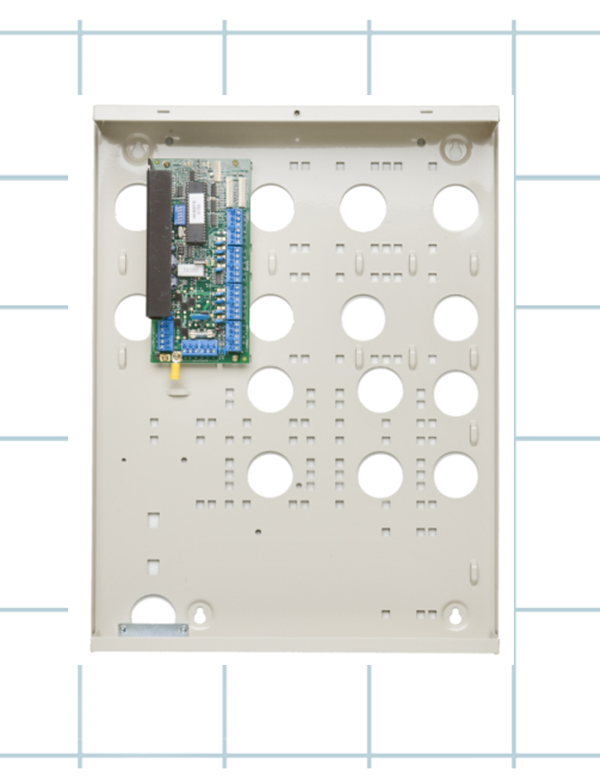

DGPs and other expansion modules can be mounted in Challenger metal housings.
Features：
-
TS0820/TS0824 - 8 zone inputs ；TS0827 - 4 zone inputs
-
8-input DGPs can be expanded to 32 inputs
-
8-input DGPs can be used with TS0840, TS0841, or TS0842 expanders to add 8 or 16 relays or outputs
-
DGPs are polled for online state
-
1 siren output (except when used at DGP address 15) Tamper input
